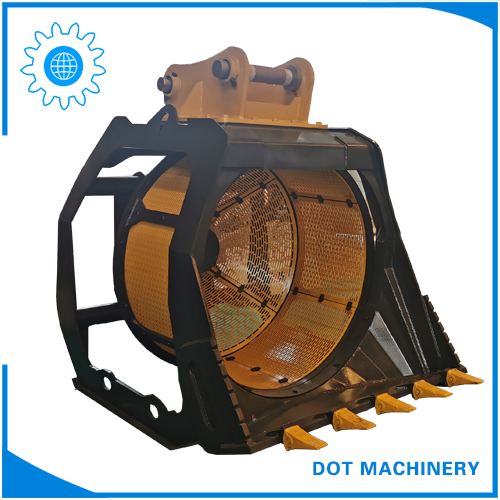

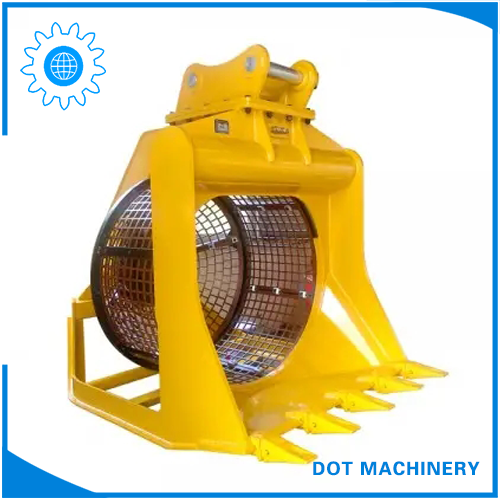

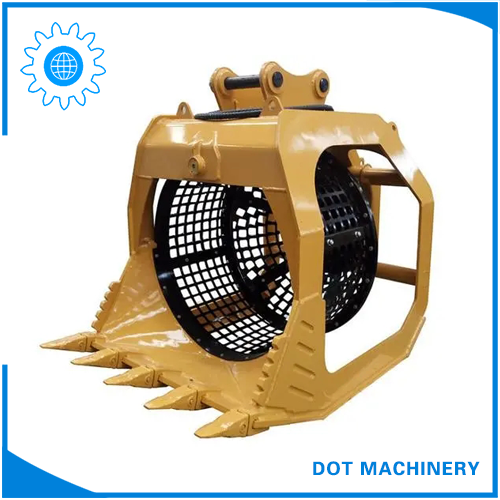

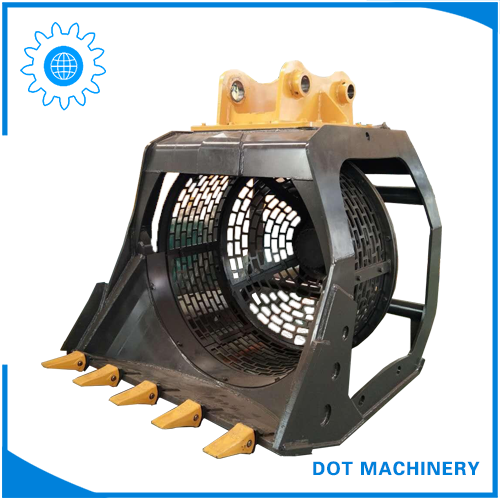

Sieving bucket is a multi -functional auxiliary machine that can be assembled on the excavator, loader or sliding loader. The use of screening buckets can complete the screening, crushing, aeration, mixing, separation, feeding and loading of solid materials in one step.
1.Multi-functional, especially suitable for crushing and recycling of building concretes and construction of mountain roads with good flexibility and cost advantages.
2.Advanced hydraulic technology, hydraulic motors are used to drive jaw plate rotation to crush concrete and stones to meet the final requirements.
3.The waste is discharged from the discharge hole, and the steel bars smaller than the discharge hole can also be discharged at the same time.
5.Imported Italian motors, the core components of the hydraulic parts are all imported. The steel plate adopts imported plates, stable and durable.
6.Quality Guarantee for hydraulic parts is half a year, the imported hydraulic motors and steel plates can be used for all kinds of stones.
Model | UJ120 | UJ-200 | UJ-300 | UJ-400 |
Matching Excavator(t) | 10-15 | 20-25 | 30-35 | 40-50 |
Bucket Capacity(m3) | 0.35 | 0.65 | 0.75 | 1.15 |
Oil Pressure(Mp) | 24.5 | 24.5 | 24.5 | 24.5 |
Feed Opening(mm) | 550x450 | 700x500 | 900x500 | 1100x600 |
Discharge Size(mm) | 15-120 | 15-120 | 15-120 | 15-120 |
Overall Dimension(mm) | 1820x1080x1200 | 2246x1380x1440 | 2367x1665x1576 | 2642x2010x1840 |
Weight(kg) | 1400 | 2500 | 3800 | 5200 |
