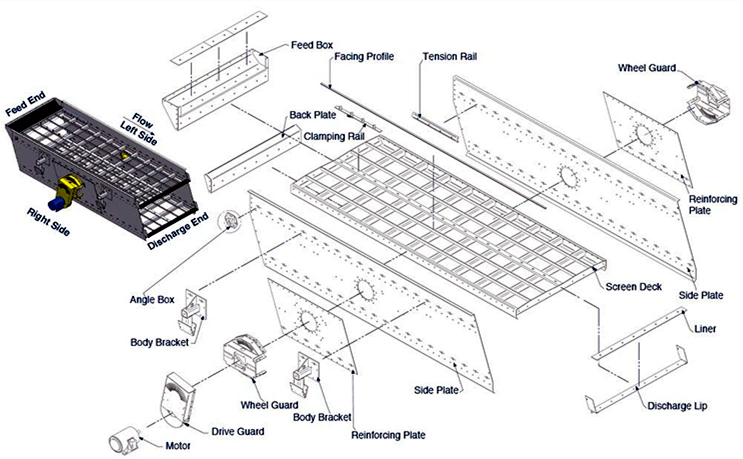

Circular vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device.

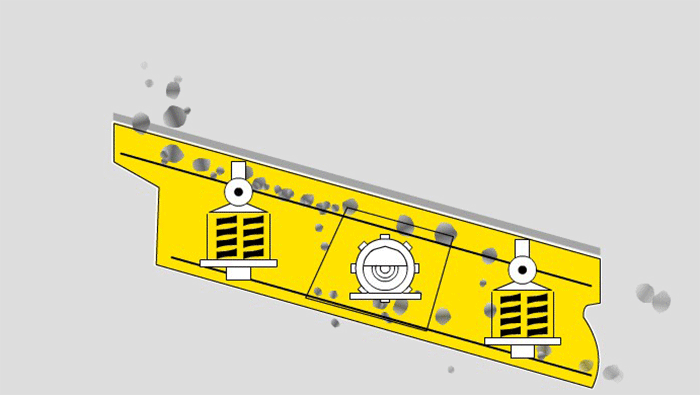

Through the flexible coupling, the motor drives the eccentric block of the vibrator rotate at high speed, generating the centrifugal force, and then causing the screen box do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realizes the purpose of classifying.

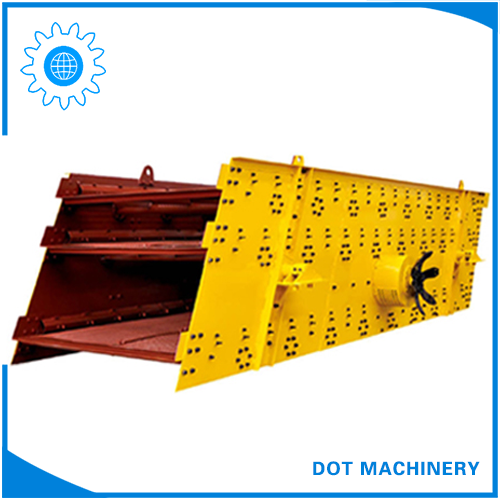

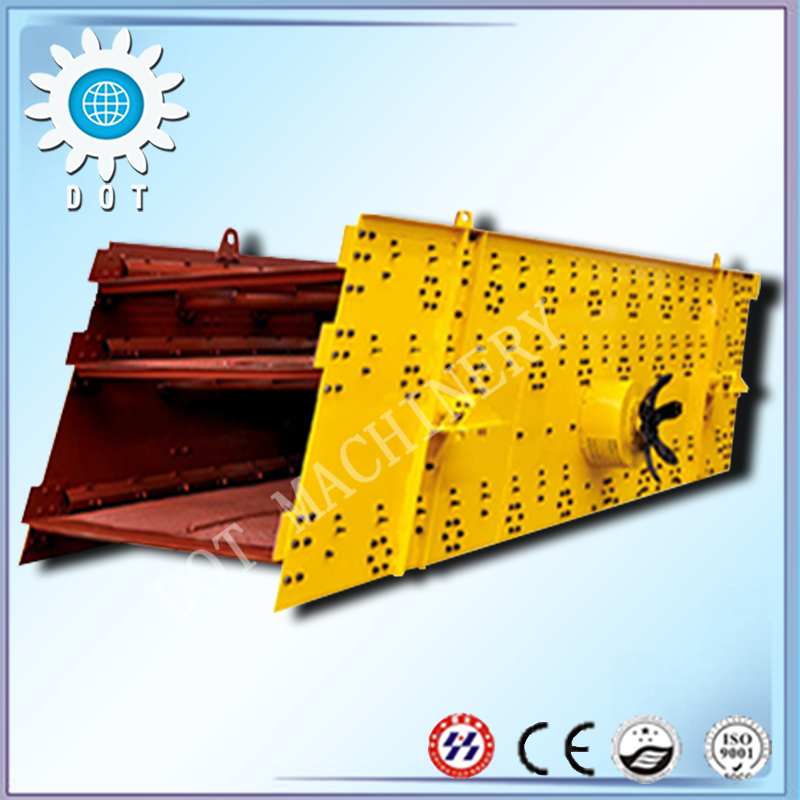

YK Series Vibrating Screen(图1)

1. The material sieve line is long, and there are many screening specifications.

2. The block eccentricity is used as the exciting force, and the exciting force is strong.

3. The sieve beam and the screen box are connected by high-strength bolts without welding.

4. The sieve machine has a simple structure and is convenient and quick to repair.

5. Adopting small amplitude, high frequency and large dip angle structure, the machine has high screening efficiency, maximum processing, long life, low power consumption and low noise.

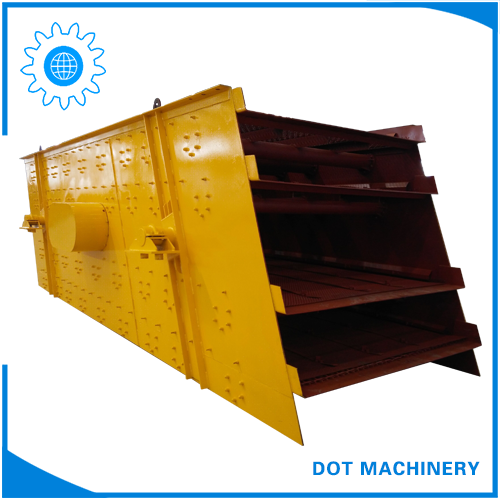

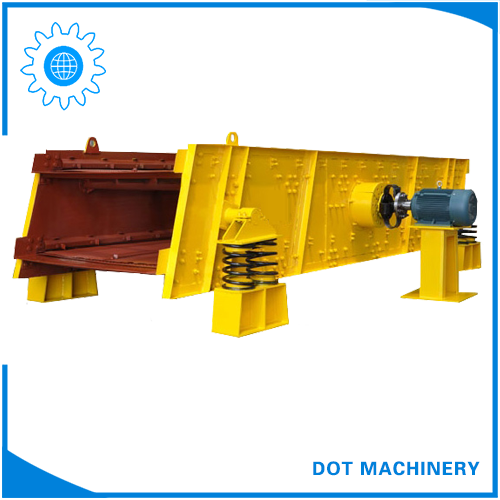

YK Series Vibrating Screen(图1)

Model	Screen Size(mm)	Screen Hole Size(mm)	Feed Size(mm)	Capacity (t/h)	Power (KW)	Vibration Frequency (r/min)	Double Amplitude(mm)
2YK1548	1500X4800	<70	<120	50-200	11	960	7
3YK1548	1500X4800	<70	<120	50-200	15	960	7
4YK1548	1500X4800	<70	<120	50-200	18.5	960	7
2YK1860	1800X6000	<70	<120	80-280	22	730	8
3YK1860	1800X6000	<70	<120	80-280	30	730	8
4YK1860	1800X6000	<70	<120	80-280	37	730	8
2YK2160	2100X6000	<70	<120	100-450	30	730	8
3YK2160	2100X6000	<70	<120	100-450	30	730	8
4YK2160	2100X6000	<70	<120	100-450	45	730	8
2YK2470	2400X7000	<70	<120	160-380	30	730	8
3YK2470	2400X7000	<70	<120	160-380	37	730	8
4YK2470	2400X7000	<70	<120	160-380	45	730	8
