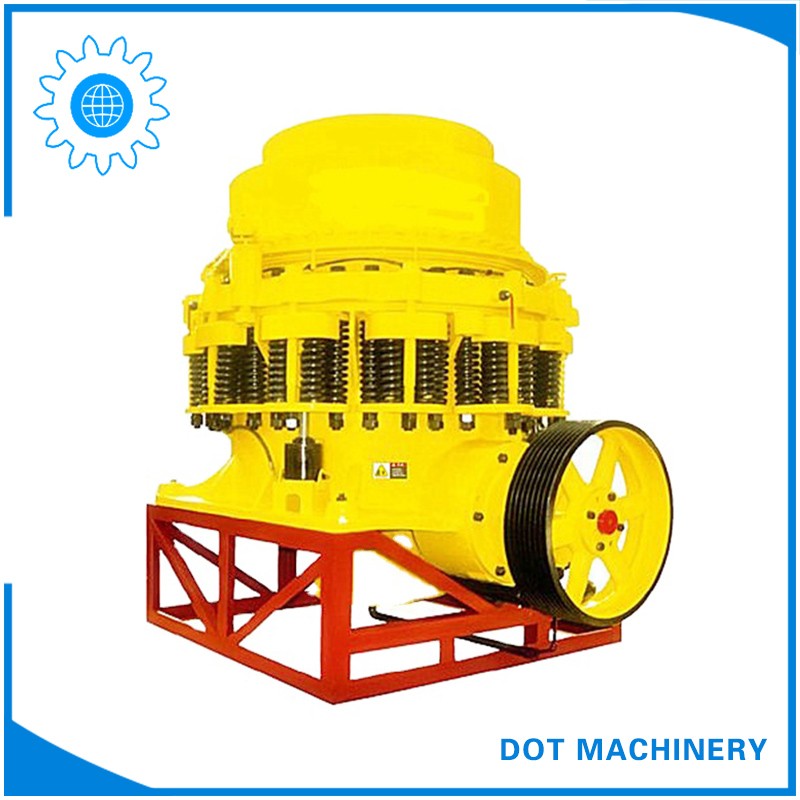

Name: Symons Cone Crusher
Date: 2022-03-23 14:53:42
View: 340
Application:


Symons cone crusher is widely used for the metallurgical industry, construction material industry, road building industry, chemical industry and silicate industry etc.,which can be used as secondary, tertiary or quaternary crushing machinery.

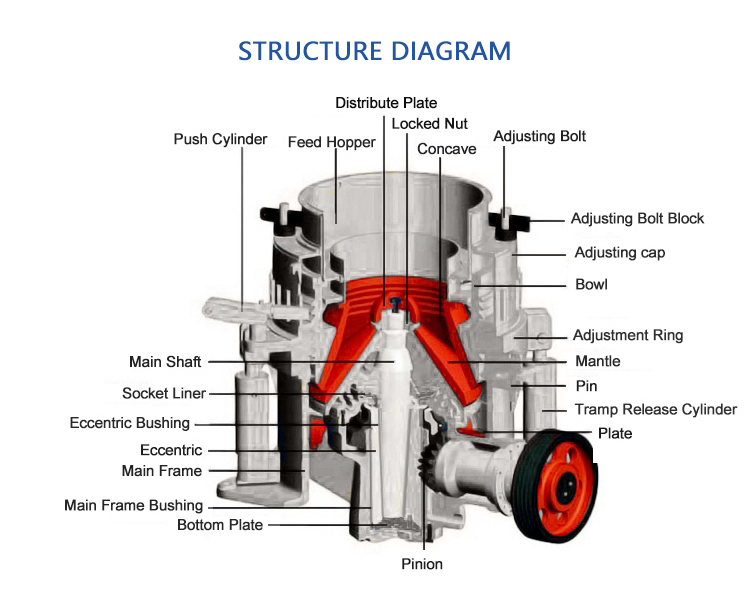

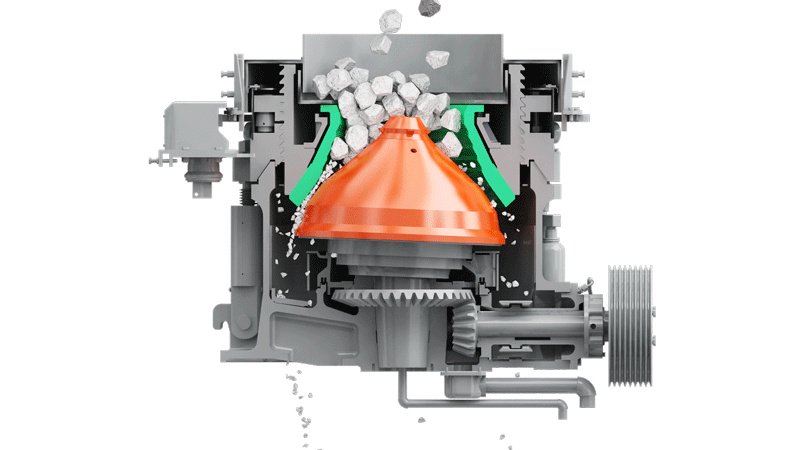

When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Symons Cone Crusher(图1)

1.Large crushing force, good particle shape, high efficiency.

2.The quick -wearing spare parts are made by highly wear-resistant materials, less consumption, lower running cost.

3.The diversification of cavity type can meet the needs of different users.

4.Hydraulic protection and hydraulic clearance, high degree of automation, easy operation, maintenance more convenient.

5.The independent multi-point lubrication system control can realize automatic machine security.


Symons Cone Crusher(图1)

Symons Cone Crusher(图1)

Symons Cone Crusher(图1)

Symons Cone Crusher(图2)


Symons Cone Crusher(图4)

Symons Cone Crusher(图5)
