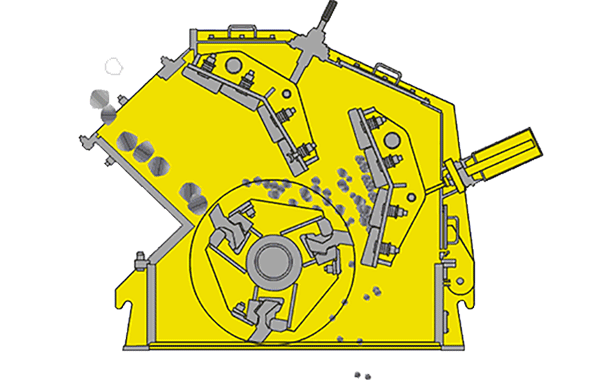

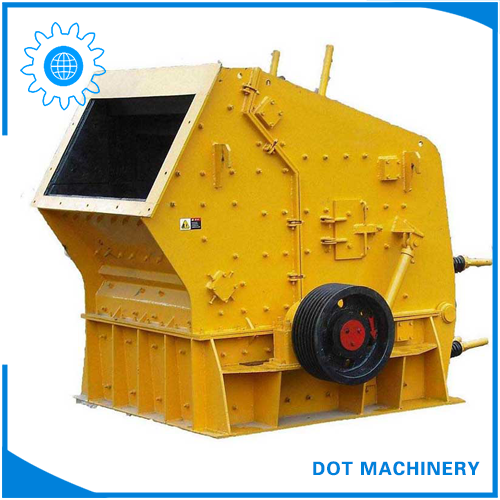

It is a kind of crushing equipment using impact energy to crush material driven by motor. When the materials get into the area where the plate hammer effects, by whose high speed impact function, the crushed materials are thrown to the impact device above the rotor continuously, and then they are rebounded from the impact liner to the effect area of the blow bar to be crushed again. The materials are crushed from big-size to small-size in the impact cavity repeatedly. The process goes on until the materials are crushed to the required size and then discharged from the down part of the machine.

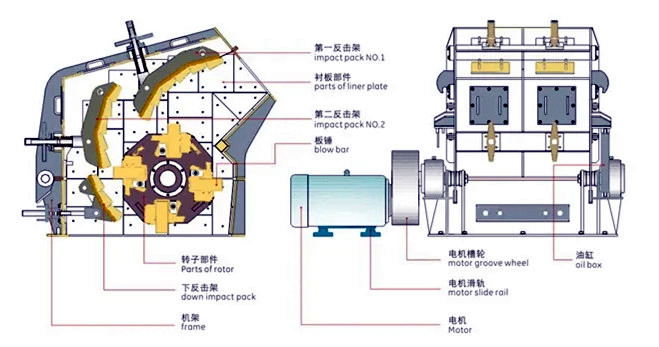

1.The new wear-resistant materials prolong the life of the blow bars, impact plates and liner plate, reduce the production cost.

2.Unique design, good crushing effect, excellent design of the rotor structure.

3.The adjustment of impact rack is convenient and flexible.

4.The body can be opened by hydraulic device, easy maintenance and replacement of spare parts.

5.Impact crusher without sieve plate, effectively prevent materials clogging.

6.The output size out from impact crusher is fine and uniform particle size with a cubic shape.
