Name: Crusher Bucket
Date: 2022-06-28 10:48:27
View: 192
Application:


It has many areas of applications: from building demolitions in general, to the requalification of former industrial and urban areas to the processing of excavation materials, from the earth movement sector to road works, from quarries to mines, from environmental reclamation to applications on rocky soil.




Crusher bucket relies on the hydraulic power of the excavator to drive the hydraulic motor transmission and rotate the eccentric shaft, thereby driving the jaw plates to squeeze stones to break. The stones can be crushed fast, and the feeding size is usually less than 50 cm. The output sizes can be adjusted freely from1.5 cm to 12 cm. Stone crushing is widely used, and this kind environmentally engineering professional crusher bucket will replaces the work of traditional large crushing plant.

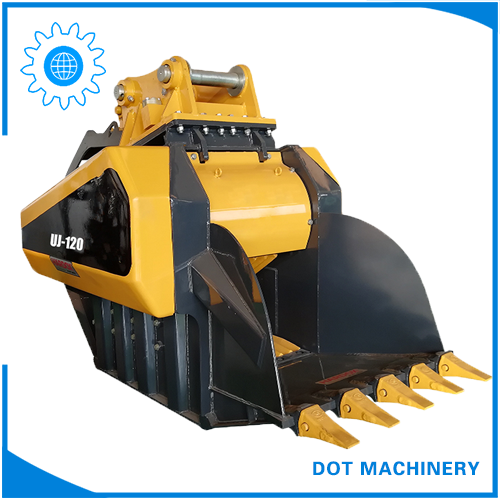

Crusher Bucket(图1)

1.Multi-functional, especially suitable for crushing and recycling of building concretes and construction of mountain roads with good flexibility and cost advantages.

2.Advanced hydraulic technology, hydraulic motors are used to drive jaw plate rotation to crush concrete and stones to meet the final requirements.

3.The waste is discharged from the discharge hole, and the steel bars smaller than the discharge hole can also be discharged at the same time.

4.Imported Italian motors, the core components of the hydraulic parts are all imported,as well as the steel plates,stable and durable.

5.Quality Guarantee for hydraulic parts is half a year, the imported hydraulic motors and steel plates can be used for all kinds of stones.

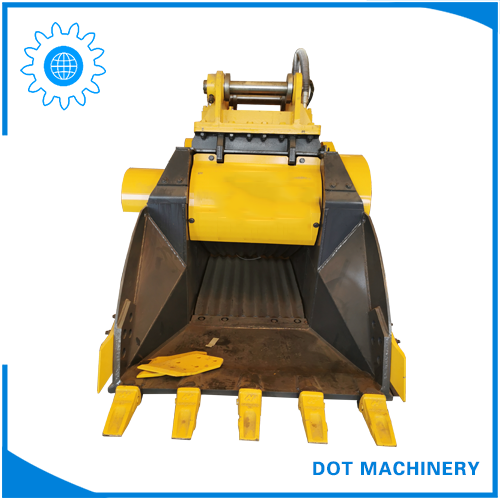

Crusher Bucket(图1)







Model

UJ100

UJ-200

UJ-300

UJ-400

Matching Excavator(t)

10-15

20-25

30-35

40-50

Bucket Capacity(m3)

0.35

0.65

0.75

1.15

Oil Pressure(Mp)

24.5

24.5

24.5

24.5

Feed Opening(mm)

550x450

700x500

900x500

1100x600

Discharge Size(mm)

15-120

15-120

15-120

15-120

Overall Dimension(mm)

1820x1080x1200

2246x1380x1440

2367x1665x1576

2642x2010x1840

Weight(kg)

1400

2500

3800

5200
