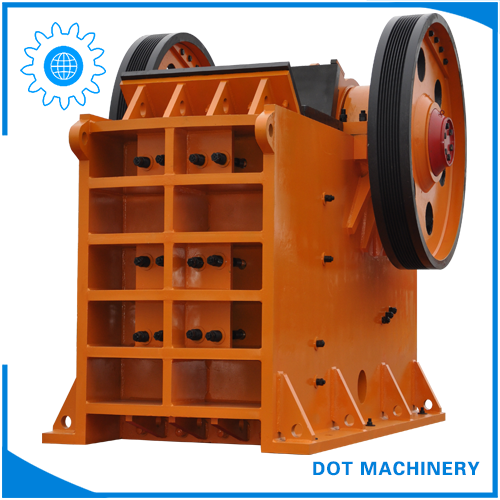

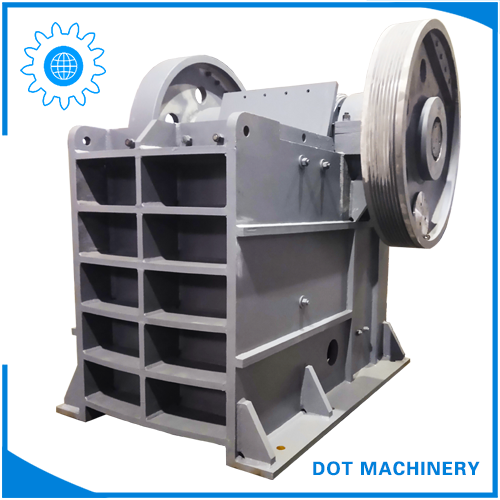

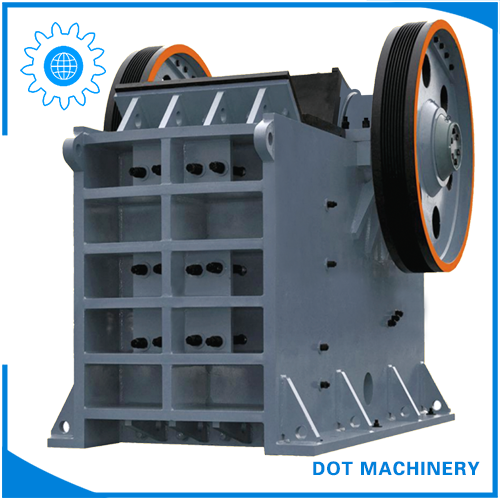

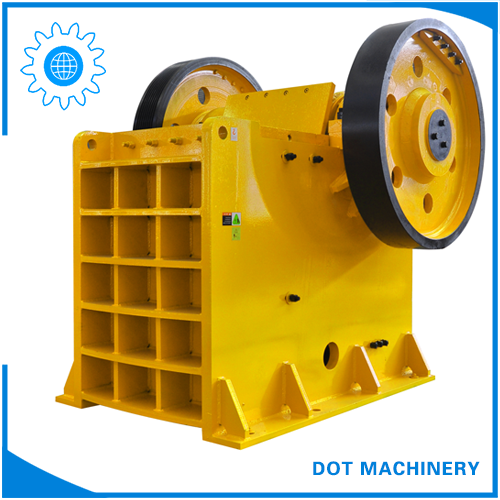

Name: Big Jaw Crusher
Date: 2022-04-27 14:30:10
View: 169
Application:


Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on,which is suitable for primary and secondary crushing all kinds of minerals and rocks with comprehensive strength less than 320 MPa.

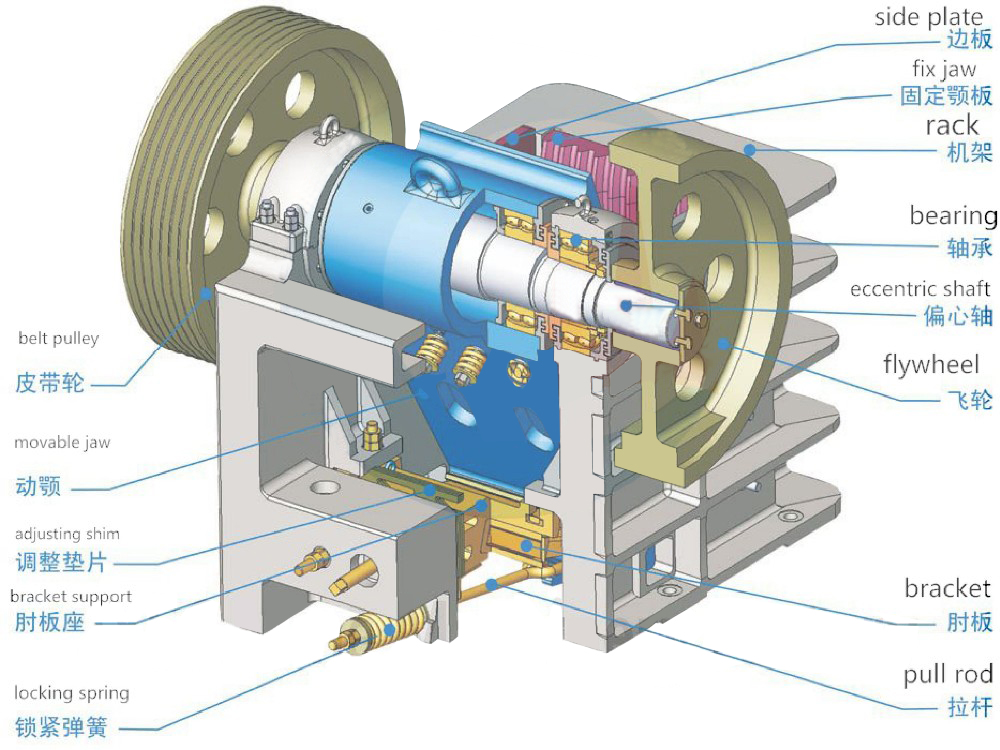

The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.


Big Jaw Crusher(图1)

1.Simple structure, convenient in use and maintenance. Stable performance, low operation cost.

2.The providential cavity design

3.The most classic design,the best manufacturing technique and materials,durable operation.

4. Energy saving: stand-alone energy saving 15% ~ 30%, the system energy saving more than double.

5.The adjustment of discharge opening is convenient and flexible.

6.A variety of jaw plates are optional.

7.The most durable bearings.

8.High-quality cast steel movable jaw head assembly.


Big Jaw Crusher(图1)

Big Jaw Crusher(图1)


Big Jaw Crusher(图2)
