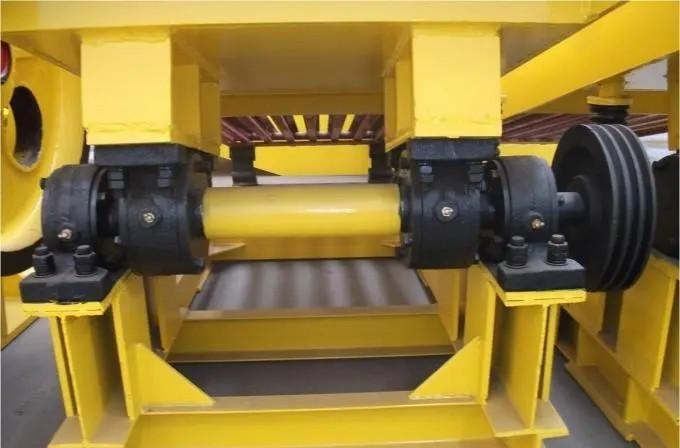

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.

1. The material feeding machinery is designed in compact structure for stable operation and reliable overall performance.

2. Coming with long lifespan, the vibratory feeder supports continuous and uniform material feeding.

3. Apart from outstanding shock resistance, the vibrating feeder is distinguished by large carrying capacity and good elasticity.

4. The low noise generated creates comfortable working environment for the users.

5. This ore processing equipment is capable of saving cost for the users because of the low energy consumption, and low maintenance and operation cost.
