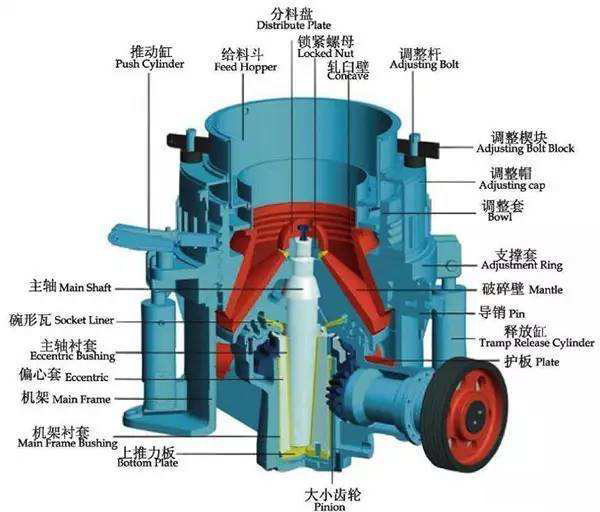

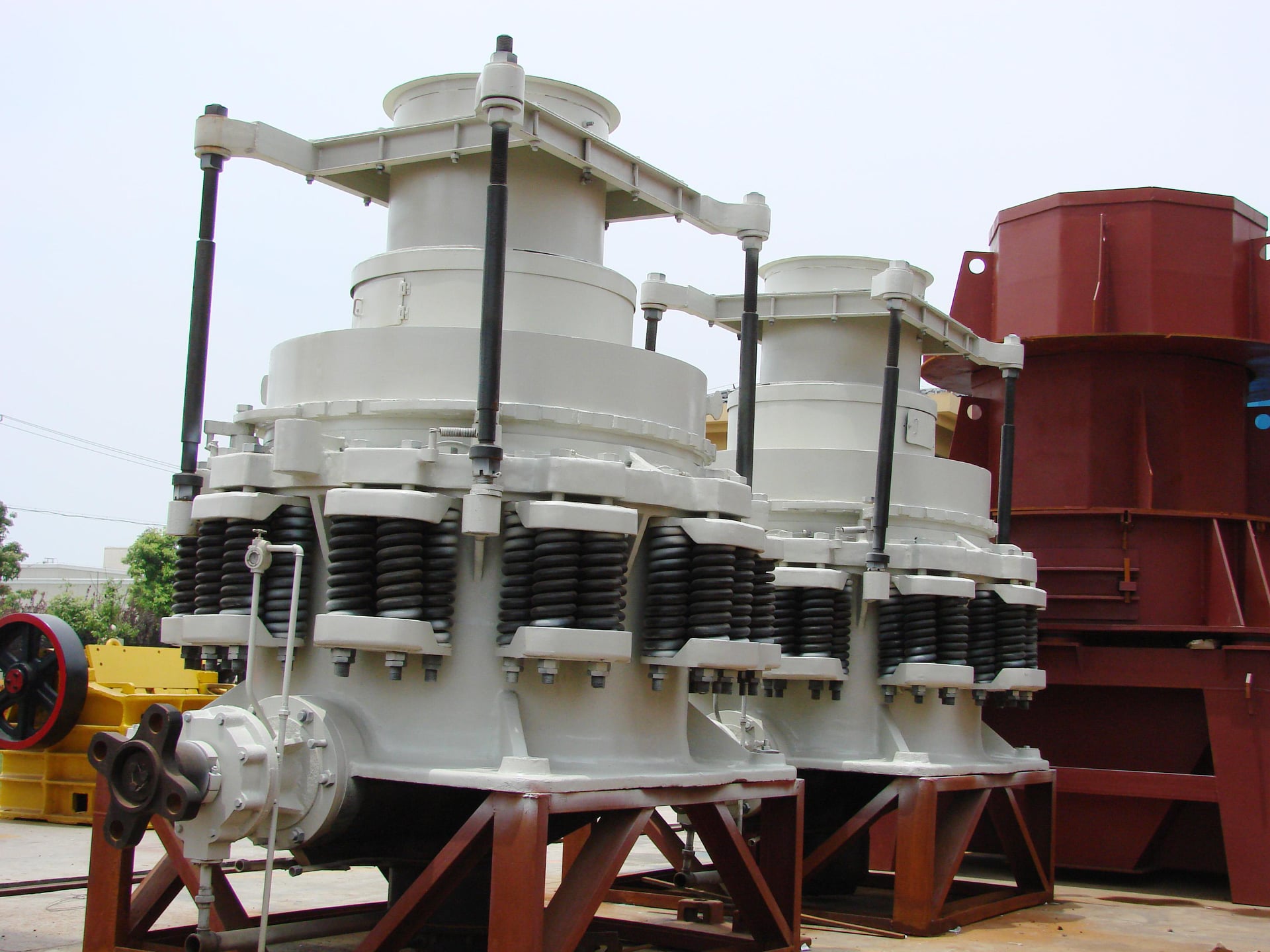

When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

1.Large crushing force, good particle shape, high efficiency.

2.The quick -wearing spare parts are made by highly wear-resistant materials, less consumption, lower running cost.

3.The diversification of cavity type can meet the needs of different users.

4.Hydraulic protection and hydraulic clearance, high degree of automation, easy operation, maintenance more convenient.

5.The independent multi-point lubrication system control can realize automatic machine security

6.The use of large-diameter shaft and heavy-duty main frame to ensure that the equipment rugged and reliable operation.
